brief introduction:
Traditional drying method, liquid gasification under the condition of high temperature, will produce a certain amount of surface tension, will be likely to destroy the fine structure of the sample, for special samples, such as biological samples, MEMS, using the traditional drying method will lead to the sample microstructure is damaged, and using supercritical drying method, the medium using liquid carbon dioxide-supercritical carbon dioxide-gas carbon dioxide phase transition method, the interface surface stress will be zero, can save the fine structure of the sample.
Supercritical dryer specially designed for MEMS (Micro-Electro-Mechanical System) for clean chamber.

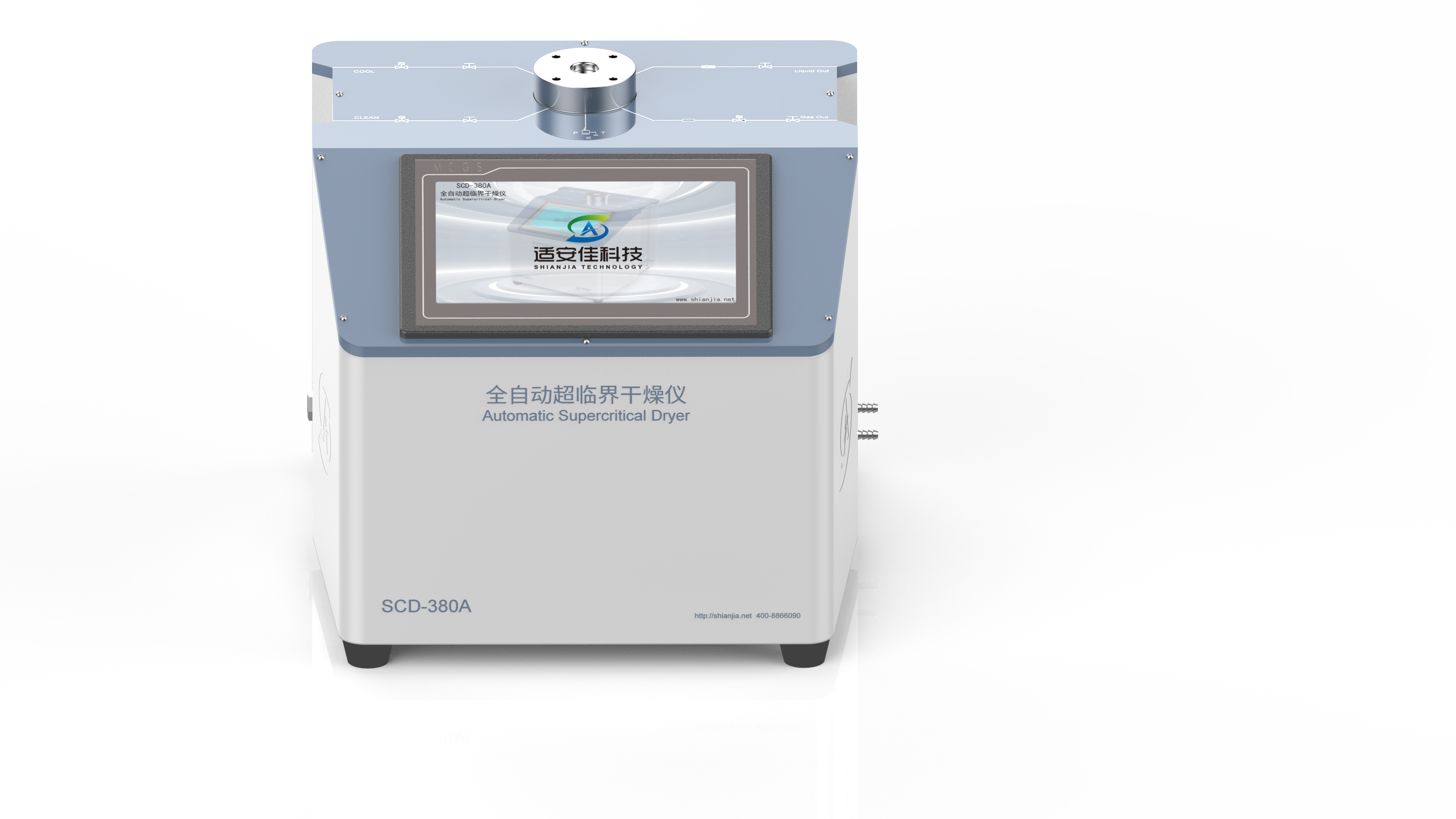

Manual supercritical drying automatic supercritical drying instrument vertical supercritical drying instrument
Specifications:
model | SCD-350M | SCD-380A | SCD-550A |
Sample pool diameter | At 4.5 and 6.5 inches | At 4.5 and 6.5 inches | 6.5 and 8.5 inches |
Dimensions of wafer | At 2,4, and 6 inches | At 2,4, and 6 inches | 68 Inch |
withstand voltage | 15MPa | 15MPa | 20MPa |
production engineering | High cleanliness components, production and testing processes are completed in the clean room | ||
operation control | hand movement | Automatic, 10-inch touch screen | Manual / touch screen / PLC control is optional |
flow control | 10-10000mL/min | 10-10000mL/min | 10-10000mL/min |
Instrument size | 650*450*500mm | 650*500*550mm | 700*550*1200mm |
Product features:
Dry sample: wafer drying special, suitable for a variety of size samples, a maximum of 5 samples each time;
Observation window: high pressure sample chamber with sapphire window and illumination to observe the internal situation of the sample pool;
Sample pool material: 316L stainless steel integrated processing, ep treatment, suitable for liquid carbon dioxide, high purity ethanol, IPA and acetone;
Refrigeration mode: built-in compressor refrigeration, to avoid the gas waste caused by carbon dioxide refrigeration, refrigeration temperature can quickly reach 0℃;
Sample cell filling: PTFE sample chamber filling ring can adjust the sample chamber diameter to fit 2 ", 4", 6 " wafer, save LCO2 dosage, shorten the drying time, improve the drying efficiency;
Filter system: including double-stage filtration, primary filtration accuracy: 0.5um, secondary filtration accuracy: 0.003um;
Production process: all production, test process are in the clean room operation, accessories are high cleanliness;
Pressure control: the instrument is equipped with an overpressure automatic pressure relief system to ensure that the pressure is controllable;
Software design: built-in a variety of processing programs, can also be customized programs and reuse, graphical interface display;
Recycling cycle: optional carbon dioxide high-pressure pump with CO 2 recycling interface, which can realize CO 2 pressurization and circulation;
Case design: strong corrosion-resistant box, desktop placement, save space.
4 and 6 inch sample pool fill ring 8 inch sample holder
Standard accessories:
Flexible high-pressure LCO 2 pipeline, 1.5 m, connected to the cylinder;
External stainless steel pipe, connecting the pump outlet to the instrument (interface optional);
External precision filter (filtration accuracy: 0.5 and 0.003um);
2 sets of special supports for wafer samples;
2 PTFE sample pool filling rings;
One power cable;
Anti-static drainage pipe of 4 meters;
One set of installation tools
User instruction manual and use guide.
Drying samples: Wafer drying is special, suitable for samples of various sizes, up to 5 samples at a time;
Viewing window: high-pressure sample chamber with sapphire window and illumination for easy observation of the inside of the cell;
Cell material: 316L stainless steel integrated processing, ep treatment, suitable for liquid carbon dioxide, high-purity ethanol, IPA and acetone;
Refrigeration mode: built-in compressor refrigeration, which avoids gas waste caused by carbon dioxide refrigeration, and the refrigeration temperature can quickly reach 0°C;
Sample cell filling: The PTFE sample chamber filling ring can adjust the sample chamber diameter to fit 2", 4", and 6" wafers, saving LCO2 usage, shortening the drying time, and improving the drying efficiency;
Filtration system: including two-stage filtration, first-stage filtration accuracy: 0.5um, second-stage filtration accuracy: 0.003um;
Production process: all production and testing processes are operated in a clean room, and the accessories are of high cleanliness;
Pressure control: The instrument is equipped with an overpressure automatic pressure relief system to ensure that the pressure is controllable;
Software design: a variety of built-in processing programs, can also be customized and reused, graphical interface display;
Recycling cycle: optional CO2 high-pressure pump with CO2 recovery interface can realize CO2 pressurization and circulation;
Chassis design: Rugged and corrosion-resistant cabinet with desktop placement to save space.
