The supercritical fluid has the diffusivity similar to gas and the solubility of liquid, and at the same time has the characteristics of low viscosity and low surface tension, which enables the supercritical fluid to quickly penetrate into the micropores. As a result, the rate of extraction/drying is faster and more efficient than liquids, and in particular the dissolution capacity can vary with temperature, pressure and polarity。
Traditional drying method, liquid directly converted into gas under high temperature conditions, which will produce a certain amount of surface tension changes, will be likely to destroy the fine structure of the sample, for special samples, such as sol-gel, biological samples, porous materials with unstable structure, the use of traditional drying methods to pretreat the sample will lead to the damage of the sample structure. In the critical point drying method, the medium adopts the phase transition method of liquid carbon dioxide -- supercritical carbon dioxide -- gas carbon dioxide, and the surface stress of the interface will be zero, so the fine structure of the sample can be preserved。
It can be used for drying Mofs, aerogel, biological samples, wafer and other samples in a dry environment near room temperature

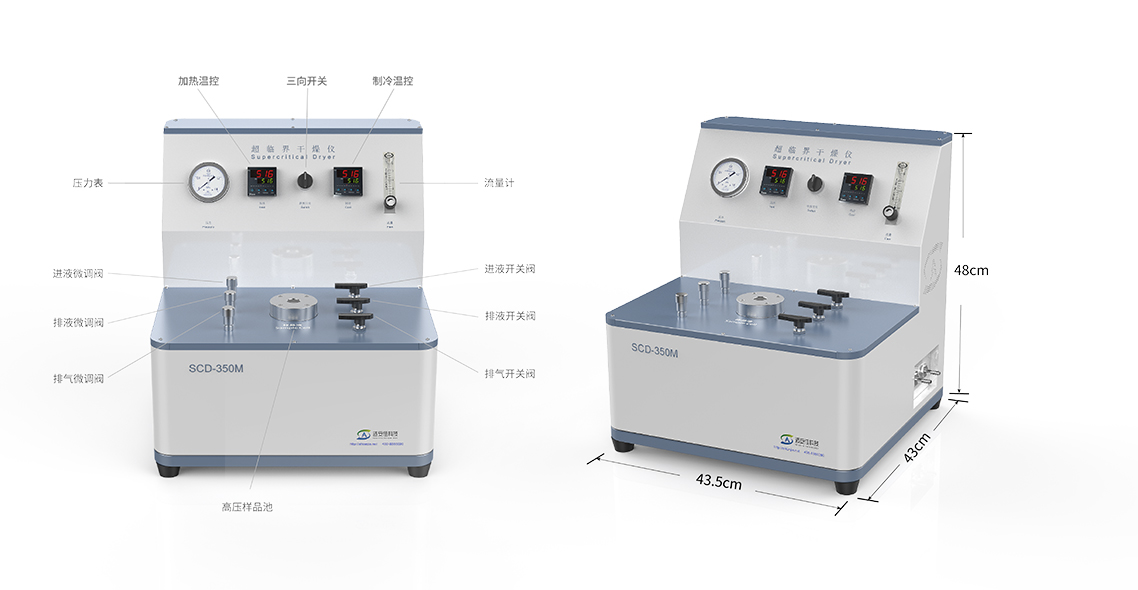

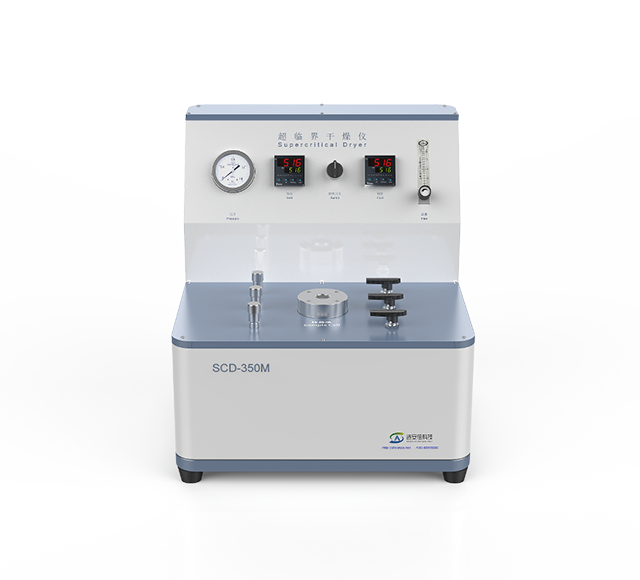

Special high pressure sample tank design
Vertical sample chamber with top fill and bottom drain to facilitate media discharge；
Automatic Temperature Control System
You only need to select the cooling or heating mode, and the automatic temperature control module with PID algorithm will automatically control the temperature within the specified range；
High pressure design
The normal working pressure of the instrument is 5-10MPa, and the design system can withstand more than 15MPa to ensure safety and reliability。
safety design
The instrument is equipped with automatic overpressure relief system to ensure pressure control。
Precise flow control
Precise control of LCO2 flow with graduated micro-metering valves；
Temperature and pressure control
Automatic control of temperature and pressure, and maintain pressure stability；
High pressure sample cell with window
The sample room is equipped with viewing Windows and lighting to facilitate the observation of liquid filling；
filtration system
Complete filtration system to protect samples and valves；
bag rack
A variety of sample holders are suitable for materials with different characteristics；
Corrosion resistant design
All lines and valves are made of stainless steel and are suitable for carbon dioxide and ethanol；
Sturdy, corrosion-resistant housing with power supply and heating indicator。
