technical specification：

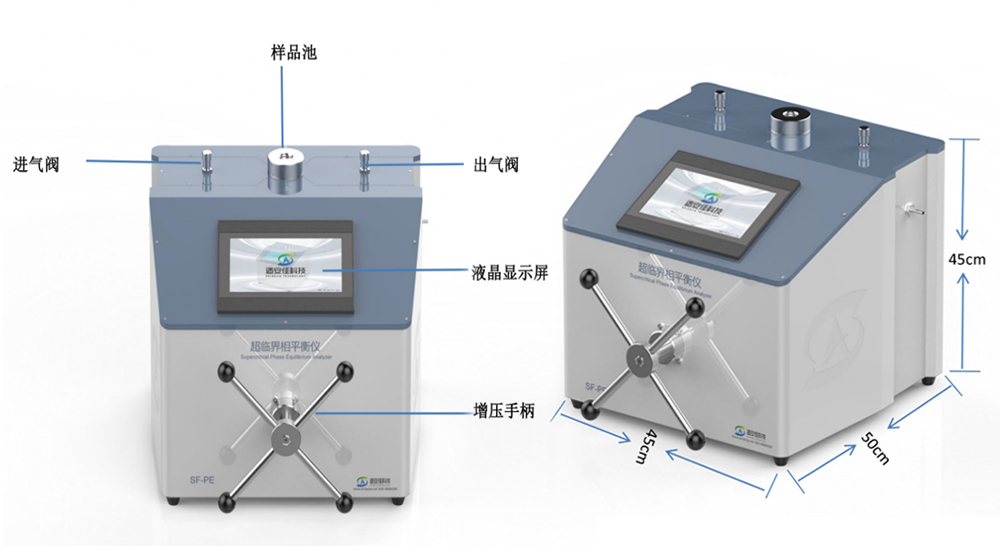

Lcd Screen Display

10Inch LCD display, can clearly observe the internal fluid phase change process, video real-time record pressure, temperature and time；

Automatic Temperature Control System

The automatic temperature control module with PID algorithm will automatically control the temperature within the specified range with high precision：±0.1℃；

High pressure design

Instrument pressure is enter into0-20MPa，0-40MPa和0-69MPa可选；

Sapphire window

Sapphire window can be customized, sapphire size and quantity can be made according to user requirements, convenient for users to observe phase change behavior；

Phase balancing pool design

Fixed volume balance tank and variable volume balance tank are available in 20,30,50ml or custom size；

safety design

The instrument is equipped with automatic overpressure relief system to ensure pressure control；

Convenient sampling

Solid and liquid injection ports are provided for simple operation；

stirring system

Optional magnetic stirring, adjustable speed, speed＜1000r/min；

filtration system

Complete filtration system to protect samples and valves；

Combined use and extension

Spectral system and mass spectrometry system can be used together。
